How Many Bottles Fit in a Wine Rack? A Simple Guide by Wall Size

One of the first questions people ask when planning a wine rack, wine wall or under-stairs wine storage project is simple:

How many bottles will it hold?

Wine Storage per Square Metre

Quick Answer: Wine Rack Bottle Capacity by Wall Size

The table below gives a general guide to how many standard 75cl wine bottles may fit in different wall sizes.

Wine rack size	Approximate wall area	Single-depth capacity	Double-depth capacity
1m wide x 1m high	1m²	70–100 bottles	140–200 bottles
1.5m wide x 1m high	1.5m²	105–150 bottles	210–300 bottles
2m wide x 1.5m high	3m²	210–300 bottles	420–600 bottles
2m wide x 2m high	4m²	280–400 bottles	560–800 bottles
3m wide x 2m high	6m²	420–600 bottles	840–1,200 bottles
4m wide x 2m high	8m²	560–800 bottles	1,120–1,600 bottles
5m wide x 2m high	10m²	700–1,000 bottles	1,400–2,000 bottles

These figures are approximate. The final bottle count will depend on the layout, bottle sizes and any design features you include.

How to Estimate Wine Rack Capacity

To estimate how many bottles your wine rack might hold, start by working out the wall area:

Width x height = square metres

For example:

3m wide x 2m high = 6m²

Using the general guide of 70 to 100 bottles per square metre, a 6m² wine wall could hold approximately:

420 to 600 bottles

If you choose double-depth storage, that number could increase to around:

840 to 1,200 bottles

However, most bespoke wine racks are not designed purely for maximum capacity. Many customers choose to include display rows, feature lighting, wine case storage, magnum spaces or integrated wine fridges, all of which can reduce the total number of bottle holes.

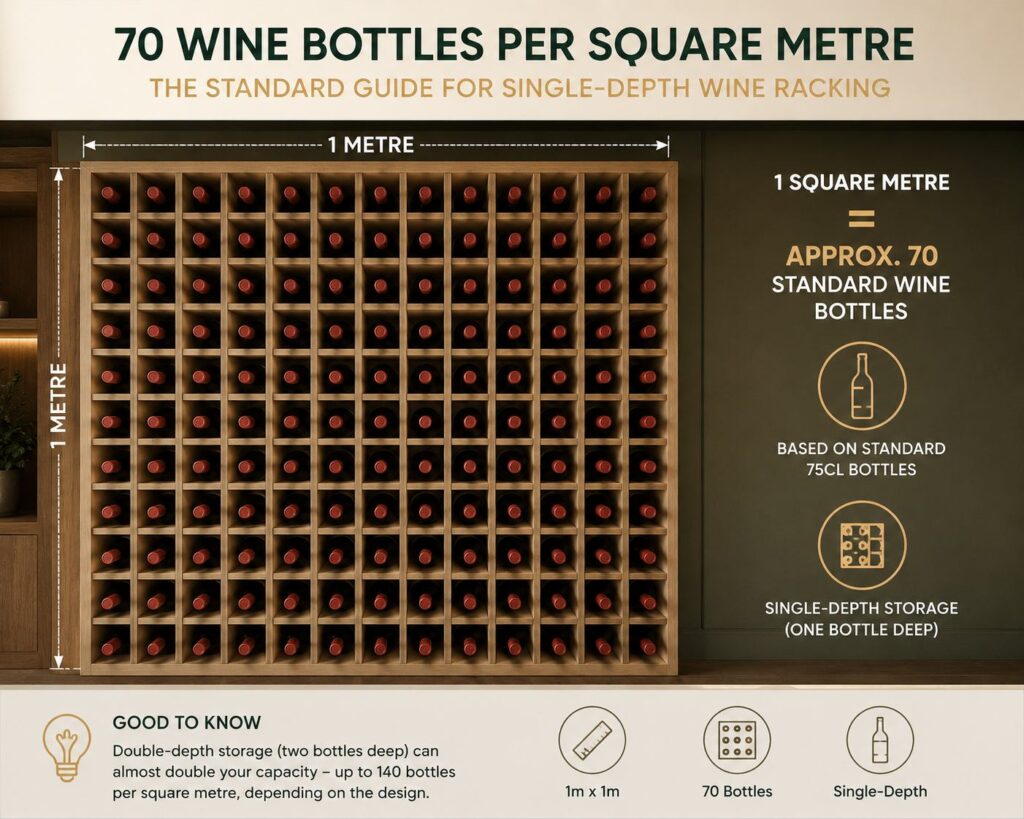

How Many Bottles Fit in 1m² of Wine Racking?

As a general guide, 1m² of wine racking can hold around 70 to 100 standard wine bottles.

In a very regular grid, a 1m x 1m space may hold around 80 bottles, depending on the racking style and bottle spacing. Traditional bottle-hole layouts often use spacing of approximately 100mm to 110mm per bottle, although this can vary depending on the design.

A 1m² wine rack is ideal for:

• Smaller home wine collections
• Kitchen or dining room features
• Compact under-counter spaces
• Starter wine storage
• Decorative wall-mounted racks

If you want a more visual design with display bottles or larger gaps, the capacity may be lower.

How Many Bottles Fit in a 2m x 2m Wine Rack?

A rectangular wine rack measuring 2m wide x 2m high gives a total area of:

2m x 2m = 4m²

A wine rack of this size could typically hold:

280 to 400 bottles in single-depth storage

With double-depth racking, the same wall could potentially hold:

560 to 800 bottles

This is a popular size for a feature wine wall in a kitchen, dining room, hallway, home bar or cellar.

How Many Bottles Fit in a 3m x 2m Wine Wall?

A 3m wide x 2m high wine wall gives a total area of:

3m x 2m = 6m²

This could typically hold:

420 to 600 bottles in single-depth storage

Or approximately:

840 to 1,200 bottles in double-depth storage

This size works well for a larger wine wall where the aim is to create both practical storage and a strong visual feature.

A balanced design might include:

• Standard bottle storage
• One or two display rows
• LED lighting
• Space for champagne or magnums
• A small section for wine cases or accessories

How Many Bottles Fit in a 4m x 1.5m Wine Wall?

A wine wall measuring 4m wide x 1.5m high gives a total area of:

4m x 1.5m = 6m²

This is the same total area as a 3m x 2m wall, so the storage capacity is similar:

420 to 600 bottles in single-depth storage

If the design is more decorative, with display rows and wine case sections, the capacity may be closer to:

350 to 450 bottles

This kind of wine wall is ideal for cellars, tasting rooms, home bars and lower-level wall installations where full-height storage is not required.

How Many Bottles Fit in an Under-Stairs Wine Rack?

Under-stairs wine racks are usually triangular rather than rectangular, so the capacity is calculated slightly differently.

To estimate the area of a triangular under-stairs space, use:

Height x length ÷ 2 = square metres

For example:

2m high x 2m long ÷ 2 = 2m²

Using the general guide of 70 to 100 bottles per square metre, a 2m² under-stairs wine rack could hold approximately:

140 to 200 bottles

If the space is deep enough for double-depth storage, the capacity may increase to around:

280 to 400 bottles

However, under-stairs wine racks often include angled cuts, display sections, glazing, lighting or a wine fridge, so the final capacity will depend heavily on the exact design.

Under-Stairs Wine Rack Capacity Examples

Under-stairs space	Approximate area	Estimated bottle capacity
1m high x 1m long	0.5m²	35–50 bottles
1.5m high x 1.5m long	1.125m²	80–110 bottles
1.8m high x 1.4m long	1.26m²	90–125 bottles
2m high x 2m long	2m²	140–200 bottles
2.2m high x 2m long	2.2m²	150–220 bottles
2m high x 2.4m long	2.4m²	170–240 bottles

These figures are for standard bottles and are intended as a guide only.

Single-Depth vs Double-Depth Wine Storage

The depth of the wine rack makes a major difference to capacity.

Single-depth wine racking

Single-depth racking stores one bottle per opening. This is the most accessible layout because each bottle is easy to see and reach.

Single-depth storage is ideal if you want:

• Easy access to every bottle
• A clean visual display
• A feature wine wall
• Label-forward or display sections
• A shallower unit depth

Double-depth wine racking

Double-depth racking stores one bottle behind another. This can almost double the capacity, depending on the final layout.

Double-depth storage is ideal if you want:

• Maximum bottle capacity
• Efficient cellar storage
• Larger wine collections
• Back-stock storage
• A practical rather than purely decorative layout

A mixed design is often best. For example, you might choose single-depth display rows at eye level and double-depth storage lower down or in less visible areas.

What Reduces Bottle Capacity?

Not every wine rack is designed to hold the maximum possible number of bottles. Many customers prefer a more attractive design with different features.

Bottle capacity may be reduced by:

• Display rows
• Angled presentation bottles
• LED lighting channels
• Larger bottle compartments
• Champagne or magnum spaces
• Wine case storage
• Drawers or cupboards
• Built-in wine fridges
• Glass doors or framing
• Climate control equipment
• Irregular walls or sloping ceilings

This is why two wine walls with the same dimensions can have different bottle capacities.

A simple storage-led layout will usually hold more bottles. A showcase design will hold fewer bottles but may create a stronger visual impact.

What About Champagne and Magnum Bottles?

Standard wine rack capacity is usually based on standard 75cl bottles.

Champagne bottles, Burgundy bottles and magnums are larger, so they need more space. If your collection includes a lot of larger-format bottles, the design should allow for this from the start.

A bespoke wine rack can include dedicated sections for:

• Champagne bottles
• Burgundy bottles
• Magnum bottles
• Wooden wine cases
• Display bottles
• Spirits or accessories

This may slightly reduce the total bottle count, but it creates a much more practical long-term storage solution.

Should You Maximise Storage or Create a Display?

There are two main ways to approach a wine rack design.

Maximum storage layout

This layout is designed to hold as many bottles as possible. It usually has fewer display areas and more repeated bottle openings.

Best for:

• Serious collectors
• Cellars
• Larger wine collections
• Back-stock storage
• Practical use

Showcase layout

This layout is designed to look impressive as well as store wine. It may include angled display rows, LED lighting, feature bottles, glazing or mixed storage areas.

Best for:

• Kitchens
• Dining rooms
• Hallways
• Under-stairs features
• Home bars
• Entertaining spaces

Many customers choose a balanced layout that gives strong capacity while still creating an attractive focal point.

How Many Bottles Should You Plan For?

It is usually worth planning for more bottles than you currently own.

Wine collections tend to grow, especially once there is a proper place to store them. If you currently have 80 bottles, planning for 120 to 150 bottles may be sensible. If you currently have 300 bottles, a capacity of 400 to 500 may give you useful room to grow.

When planning your wine rack, think about:

• How many bottles you currently own
• How often you buy wine
• Whether you buy by the case
• Whether you collect investment or fine wine
• Whether you need everyday drinking storage
• Whether you want space for champagne or larger bottles
• Whether your collection is likely to grow

Example Wine Rack Capacity Calculations

Example 1: Small kitchen wine rack

A wine rack measuring 1m wide x 1m high has an area of 1m².

Estimated capacity:

70 to 100 bottles

This works well for a compact home collection.

Example 2: Medium wine wall

A wine wall measuring 2.5m wide x 2m high has an area of 5m².

Estimated capacity:

350 to 500 bottles

This could be designed as a practical wine wall with some display features.

Example 3: Large feature wine wall

A wine wall measuring 5m wide x 2m high has an area of 10m².

Estimated capacity:

700 to 1,000 bottles

With double-depth racking, it may hold significantly more.

Example 4: Under-stairs wine rack

An under-stairs space measuring 2m high x 2m long has a triangular area of 2m².

Estimated capacity:

140 to 200 bottles

With double-depth storage in some sections, this could potentially increase.

Do You Need a Bespoke Design?

If your wall is a simple rectangle, estimating capacity is relatively straightforward. If your space is under stairs, in a cellar, around a doorway or includes awkward angles, a bespoke design will provide a much more accurate bottle count.

A bespoke wine rack design can take into account:

• Exact wall dimensions
• Available depth
• Ceiling slopes
• Skirting boards
• Existing cupboards
• Electrical points
• Lighting requirements
• Cooling or climate control
• Bottle sizes
• Desired display features
• Future collection growth

This means the final wine rack will not only fit the space, but also suit the way you use your wine collection.

FAQs

How many bottles fit in a wine rack?

As a general guide, a wine rack can hold around 70 to 100 standard wine bottles per square metre in single-depth storage. Double-depth storage can increase this significantly.

How many bottles fit in 1m² of wine racking?

A 1m² wine rack usually holds around 70 to 100 bottles, depending on the layout and bottle spacing.

How many bottles fit in a 2m x 2m wine wall?

A 2m x 2m wine wall has an area of 4m² and may hold around 280 to 400 bottles in single-depth storage.

How many bottles fit under the stairs?

A typical under-stairs wine rack may hold anywhere from 50 to 250 bottles, depending on the size of the triangular space, the depth and the design.

Does double-depth wine racking double the bottle capacity?

It can come close to doubling the capacity, but the exact increase depends on the design, access requirements and bottle sizes.

Do display rows reduce the number of bottles?

Yes. Display rows and angled presentation sections usually reduce the total number of bottles, but they can make the wine rack much more attractive.

Can a wine rack be designed for champagne and magnums?

Yes. A bespoke wine rack can include larger spaces for champagne bottles, magnums, wooden cases and mixed bottle sizes.

What is the best wine rack layout?

The best layout depends on your priorities. If you want maximum capacity, choose a storage-led design. If the wine rack will be a feature in your home, a mixed layout with display rows, lighting and varied bottle sections may be better.

Planning a Wine Rack?

If you are planning a wine wall, under-stairs wine rack, wine room or cellar, the best starting point is to measure the space.

Please provide:

• Width
• Height
• Depth
• Whether the space is rectangular or triangular
• Preferred material, such as oak or pine
• Any extras, such as LED lighting, glazing, cooling or wine fridges
• Approximate number of bottles you would like to store

From there, a bespoke wine rack can be designed to make the best use of your space, whether your priority is maximum storage, a beautiful display, or a combination of both.

This project was guided by the client’s love for Champagne and drinking chilled crisp white wine in the garden.

Built in solid oak with a natural stain this wine storage system includes two large wine fridges, designed to be a centre piece of furniture as well as a focal point for wine and Champagne storage. The wine storage solution works perfectly for the many social events they host, storing many bottle of red, white and champagne, all at the perfect temperature.

The two fridges provide a beautiful wine wall without the extra cost of a fully enclosed wine wall system.

Key features:

• Two large 1800 high wine fridges to store 166 wine bottle each
• Full-height modular system
• Solid oak construction with a natural oak stain
• Small worktop with mirror
• Nine wine boxes for room temperature wine storage

Why this works

• Utilises two fridge to maximise chilled bottle store, and at different temperatures
• Wine boxes allow storage of mixed wines at room temperature
• Oak chassis and standalone design looks premium and elegant

Tip for future wine wall projects

Be creative with how you put together your wine wall so that it fits your wine collecting and tasting hobby. Choose from a fully enclosed system or a modular system that can lower the cost and include fridges, wine boxes, wine racks, lighting and glazing.
